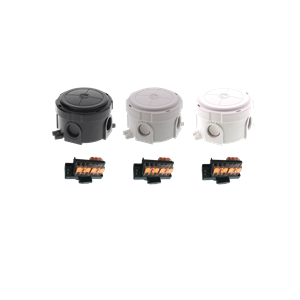

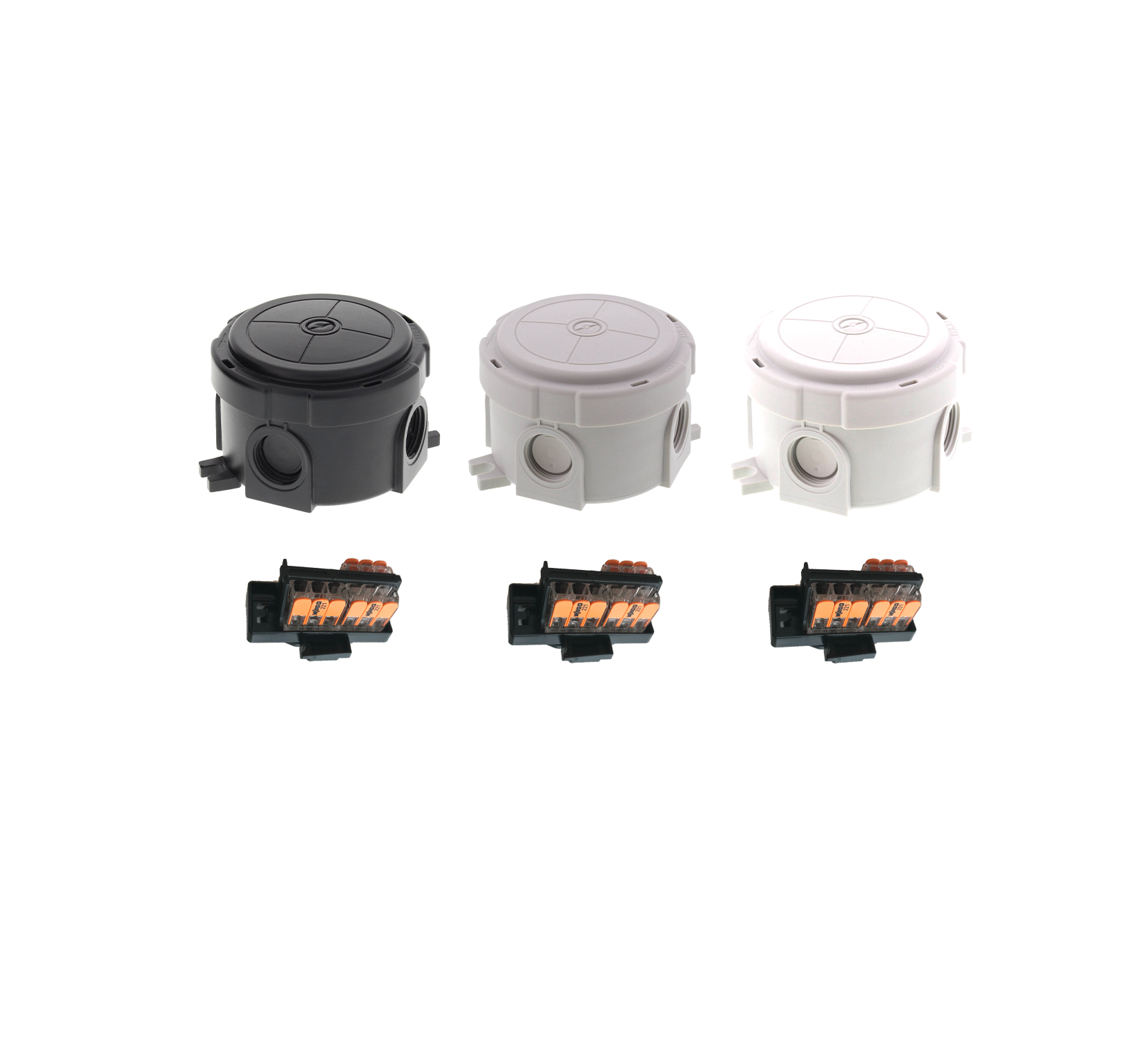

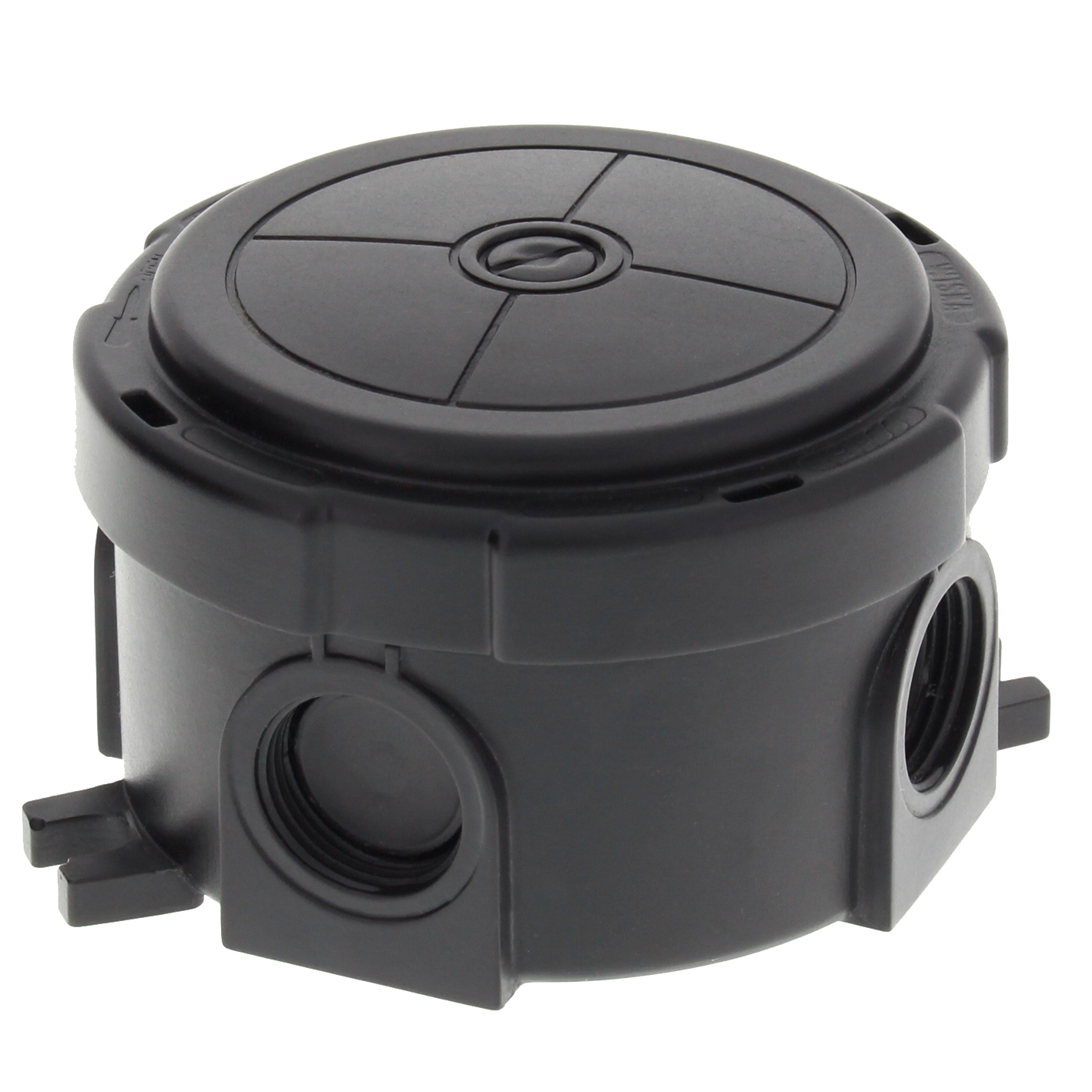

COMBI® 304/3x221-413 Black/White/Grey

Features

Material	Polypropylene
Material sealing gasket	TPE
Temp. range min	-30 °C
Temp. range max	100 °C
Temperatures during install.	-5 °C - 60 °C
Protection class	IP66 / IP67
Glow wire test	750 °C
Voltage	400 V
Rated cross section	2,5 mm²
Terminals/poles	4 mm²
Fixing	2 external mounting feet
Ø cable diameter min	3 mm
Ø cable diameter max	12 mm
External dimensions LxWxH	Ø 82 x 57mm
Type of cable gland	M 20 x 1,5

Luckins No:408815732

Carbon Foot Print:

0.23(PCF kg/piece)

Colour:

BLACK

External dimensions LxWxH:

¯ 82 x 57mm

Filling compound:

0

Fixing:

2 external mounting feet

Glow wire test:

750 ¡C

Group:

COMBI Junction Boxes

Impact resistance:

0

Notice:

0

Ø cable diameter min:

3,0 mm, 12,0 mm

Packing unit:

5

Protection Class:

IP66 / IP67

Rated cross section:

2,5 mm_

Size:

304/221

Stock:

In-Stock

Temp. range max:

100 ¡C

Terminals/Poles:

4 mm_

Type:

COMBI 304 / 3-221-413 BK

Voltage:

400,0 V

Item Number: 10110636

Trade Price: £7.84

Size:

Colour:

Quantity:

Please login

Features

Material	Polypropylene
Material sealing gasket	TPE
Temp. range min	-30 °C
Temp. range max	100 °C
Temperatures during install.	-5 °C - 60 °C
Protection class	IP66 / IP67
Glow wire test	750 °C
Voltage	400 V
Rated cross section	2,5 mm²
Terminals/poles	4 mm²
Fixing	2 external mounting feet
Ø cable diameter min	3 mm
Ø cable diameter max	12 mm
External dimensions LxWxH	Ø 82 x 57mm
Type of cable gland	M 20 x 1,5

Luckins No:408815732

Carbon Foot Print:

0.23(PCF kg/piece)

Colour:

BLACK

External dimensions LxWxH:

¯ 82 x 57mm

Filling compound:

0

Fixing:

2 external mounting feet

Glow wire test:

750 ¡C

Group:

COMBI Junction Boxes

Impact resistance:

0

Notice:

0

Ø cable diameter min:

3,0 mm, 12,0 mm

Packing unit:

5

Protection Class:

IP66 / IP67

Rated cross section:

2,5 mm_

Size:

304/221

Stock:

In-Stock

Temp. range max:

100 ¡C

Terminals/Poles:

4 mm_

Type:

COMBI 304 / 3-221-413 BK

Voltage:

400,0 V
