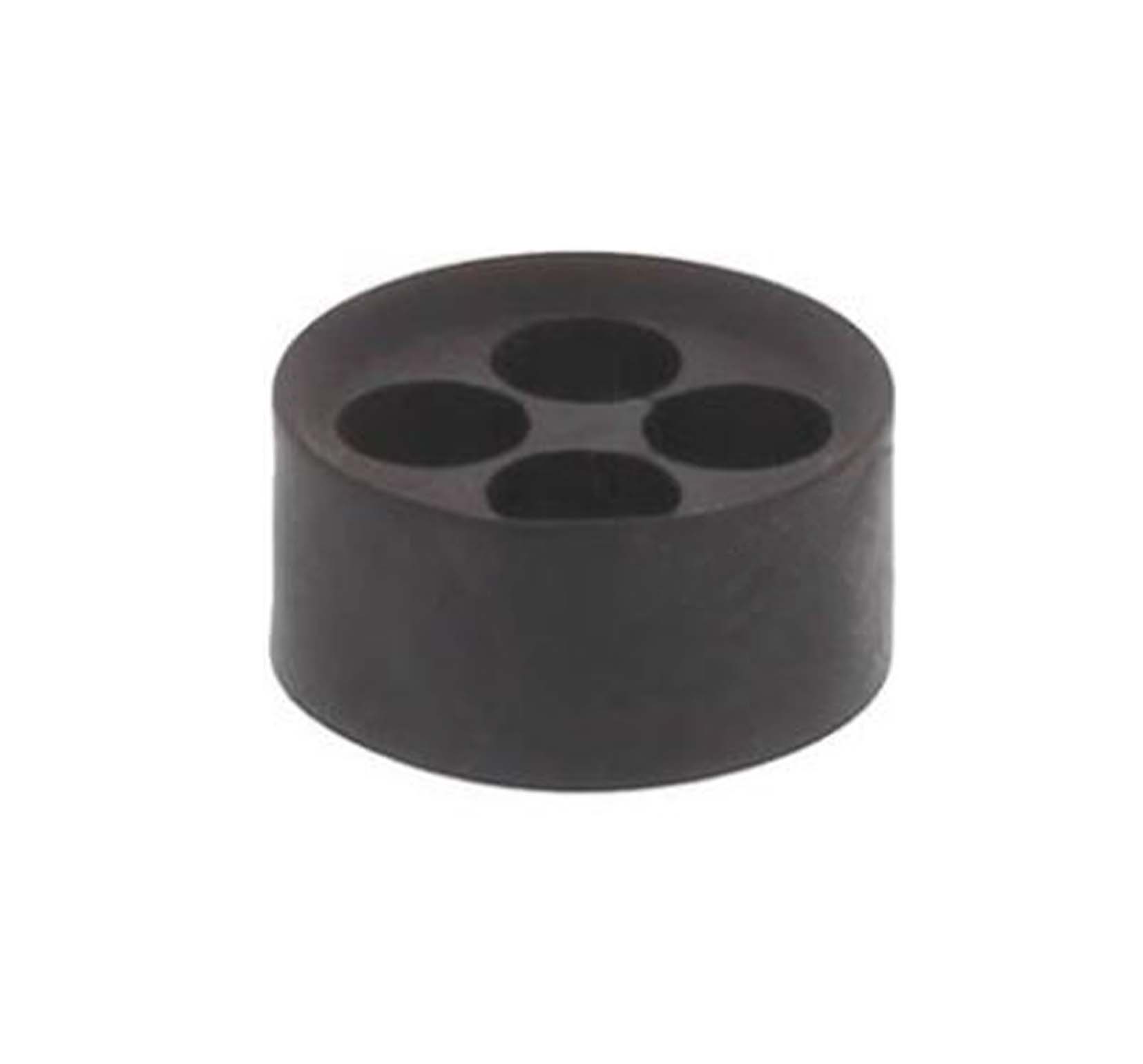

10064950 - MFD 32/04/080 SPRINT M32 Thermoplastic Elastomer Multiple Sealing Insert, 4 Hole, 6 mm - 8 mm, Black

MFD 32 (Multiple Sealing Insert for M32 gland)

Material	Thermoplastic elastomer
Temp. range min	-40 °C
Temp. range max	100 °C
Protection class	IP66 / IP68
Ø cable diameter min	6 mm
Ø cable diameter max	8 mm
Quantity of cable	4
BxL	25,6 x 12,0 mm
Product Color	RAL 9005
Using for cable gland	SPRINT 32
Order no. RAL 9005	10064950
Type	MFD 32/04/080

Luckins No:402073156

BxL:

25,6 x 12,0 mm

Carbon Foot Print:

0.04(PCF kg/piece)

Colour:

BLACK

EAN Number:

4007685649506

Group:

Sealing Inserts & Gaskets

Material:

Thermoplastic elastomer

Ø cable diameter max:

8,0 mm

Ø cable diameter min:

6,0 mm

Protection Class:

IP66 / IP68

Size:

32/04/080

Stock:

Out of Stock

Temp. range max:

100 ¡C

Temp. Range Min:

-40 ¡C

Item Number: 10064950

Trade Price: £1.18

Size:

32/01/050

32/01/060-02/070-01/

32/01/060-02/090

32/01/073

32/01/090

32/01/100-01/090

32/01/115-01/050

32/01/115-01/065

32/01/115-01/085

32/01/120

32/01/132-01/065

32/02/080

32/02/085

32/02/100

32/03/065

32/03/080

32/03/090

32/04/070

32/04/080

32/06/040

32/08/040

32/08/050

Colour:

Black

Quantity:

Please login

Material	Thermoplastic elastomer
Temp. range min	-40 °C
Temp. range max	100 °C
Protection class	IP66 / IP68
Ø cable diameter min	6 mm
Ø cable diameter max	8 mm
Quantity of cable	4
BxL	25,6 x 12,0 mm
Product Color	RAL 9005
Using for cable gland	SPRINT 32
Order no. RAL 9005	10064950
Type	MFD 32/04/080

Luckins No:402073156

BxL:

25,6 x 12,0 mm

Carbon Foot Print:

0.04(PCF kg/piece)

Colour:

BLACK

EAN Number:

4007685649506

Group:

Sealing Inserts & Gaskets

Material:

Thermoplastic elastomer

Ø cable diameter max:

8,0 mm

Ø cable diameter min:

6,0 mm

Protection Class:

IP66 / IP68

Size:

32/04/080

Stock:

Out of Stock

Temp. range max:

100 ¡C

Temp. Range Min:

-40 ¡C

MFD 32/04/080 SPRINT M32 Thermoplastic Elastomer Multiple Sealing Insert, 4 Hole, 6 mm - 8 mm, Black - Quote
