ESKVZ Cable Gland with Strain Relief Black (M12 - M32)

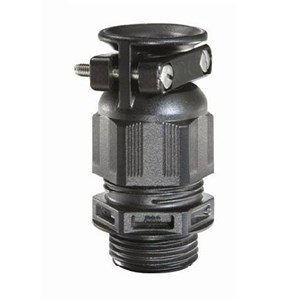

ESKVZ 32 with external strain relief RAL 9005

Cable Glands With External Strain Relief

10061475

M12

Thread length - 9mm

Protection class - IP68 / 69

Glow wire test - 750°C

Temperature range - -40°C - 100°C

Colour - Black

Material - Polyamide, Gasket: EPDM

Luckins No: 402062057

Carbon Foot Print:

0.07 (PCF kg/piece)

Colour:

BLACK

Glow wire test:

750 ¡C

Group:

Plastic Cable Glands

Key width SW:

16 mm

Material Cable Gland:

Polyamide

Ø cable diameter min:

3,0 mm, 7,0 mm

Ø cable UL approved:

3,6 - 6,4 mm

Ø Connection thread D:

12

Packing unit:

50

Protection Class:

IP68 (5 bar 30 min), IP69

Size:

M12

Stock:

In-Stock

Temp. range max:

100 ¡C

Temp. Range Min:

-40 ¡C

Type:

ESKVZ 12 BK

Type of cable anchorage:

B

Item Number: 10061475

Trade Price: £2.74

Size:

Colour:

Quantity:

Please login
