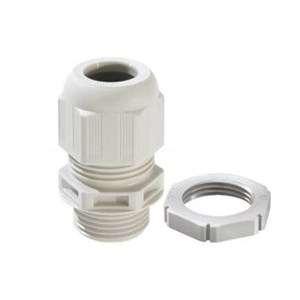

GLP32+ - ESKV 32+ + EMUG 32 (18-25mm) gland pack (10 + 10)

GLP32+ ESKV 32+ Grey
Gland Pack (10 glands, 10 locknuts)

Material cable gland	Polyamide
Material sealing gasket	EPDM
Protection class	IP69, IP68 (5 bar 30 min)
Temp. range min	-40 °C
Temp. range max	100 °C
Glow wire test	750 °C
Thread type	M
Ø Connection thread D	32
Lead	1,5
Length screw-in thread L	12 mm
Ø cable diameter min	18 mm
Ø cable diameter max	25 mm
Key width SW	36 mm
Collar diameter (E)	40 mm
Total length TL	42 mm - 51 mm

Y

Colour:

Grey

Glow wire test:

Polyamide

Group:

Gland Packs

Material:

M32

Material Cable Gland:

Grey

Stock:

Out of Stock

Temp. Range Min:

18 mm - 25 mm

Item Number: 10111080

Trade Price: £35.70
