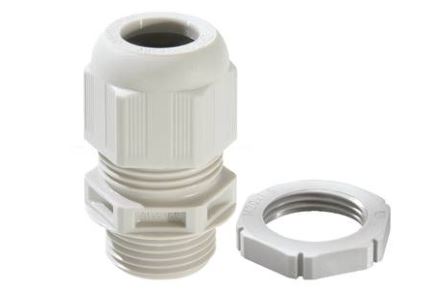

GLP25+ Gland Pack (10 + 10) (Clamping Range 13 - 17.5mm)

GLP25+ Gland Pack (10 + 10) (Clamping Range 13 - 17.5mm)

Material cable gland	Polyamide
Material sealing gasket	EPDM
Protection class	IP68 (5 bar 30 min), IP69
Temp. range min	-40 °C
Temp. range max	100 °C
Glow wire test	750 °C
Thread type	M
Ø Connection thread D	25
Lead	1,5
Length screw-in thread L	10 mm
Ø cable diameter min	13 mm
Ø cable diameter max	17,5 mm
Key width SW	29 mm
Collar diameter (E)	32 mm
Total length TL	38 mm - 47 mm

Luckins No:425710409

Colour:

Grey

Glow wire test:

Polyamide

Group:

Gland Packs

Material Cable Gland:

Grey

Size:

M25+

Stock:

In-Stock

Temp. Range Min:

13 - 17.5

Item Number: 10111148

Trade Price: £19.10

Size:

Colour:

Quantity:

Please login

GLP25+ Gland Pack (10 + 10) (Clamping Range 13 - 17.5mm)

Material cable gland	Polyamide
Material sealing gasket	EPDM
Protection class	IP68 (5 bar 30 min), IP69
Temp. range min	-40 °C
Temp. range max	100 °C
Glow wire test	750 °C
Thread type	M
Ø Connection thread D	25
Lead	1,5
Length screw-in thread L	10 mm
Ø cable diameter min	13 mm
Ø cable diameter max	17,5 mm
Key width SW	29 mm
Collar diameter (E)	32 mm
Total length TL	38 mm - 47 mm

Luckins No:425710409

Colour:

Grey

Glow wire test:

Polyamide

Group:

Gland Packs

Material Cable Gland:

Grey

Size:

M25+

Stock:

In-Stock

Temp. Range Min:

13 - 17.5
