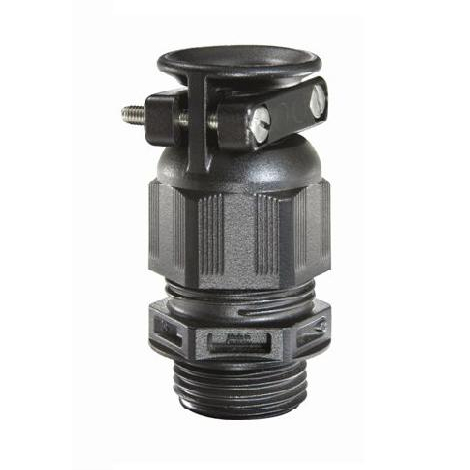

ESKEZ-E ATEX Cable Gland with Strain Relief (M20 - M32)

ESKEZ-e 20 Ex-Plastic cable gland with external strain relief M16

Carbon Foot Print:

0.13 (PCF kg/piece)

Colour:

BLACK

EAN Number:

4.00769E+12

Glow wire test:

750 ¡C

Group:

ATEX Cable Glands

Key width SW:

24 mm

Material Cable Gland:

Polyamide

Material Sealing Gasket:

EPDM

Ø cable diameter max:

13,0 mm

Ø cable diameter min:

8,0 mm

Ø Connection thread D:

Packing unit:

Protection Class:

IP66 / IP68 (5 bar 30 min)

Stock:

Out of Stock

Temp. range max:

75 ¡C

Temp. Range Min:

-40 ¡C

Thread type:

Total length TL:

49,0 - 58,0 mm

Type of protection:

Ex eb, Ex tb

Item Number: 10100455

Trade Price: £5.60

Size:

Colour:

Quantity:

Please login

ESKEZ-e 20 Ex-Plastic cable gland with external strain relief M16

Carbon Foot Print:

0.13 (PCF kg/piece)

Colour:

BLACK

EAN Number:

4.00769E+12

Glow wire test:

750 ¡C

Group:

ATEX Cable Glands

Key width SW:

24 mm

Material Cable Gland:

Polyamide

Material Sealing Gasket:

EPDM

Ø cable diameter max:

13,0 mm

Ø cable diameter min:

8,0 mm

Ø Connection thread D:

Packing unit:

Protection Class:

IP66 / IP68 (5 bar 30 min)

Stock:

Out of Stock

Temp. range max:

75 ¡C

Temp. Range Min:

-40 ¡C

Thread type:

Total length TL:

49,0 - 58,0 mm

Type of protection:

Ex eb, Ex tb
