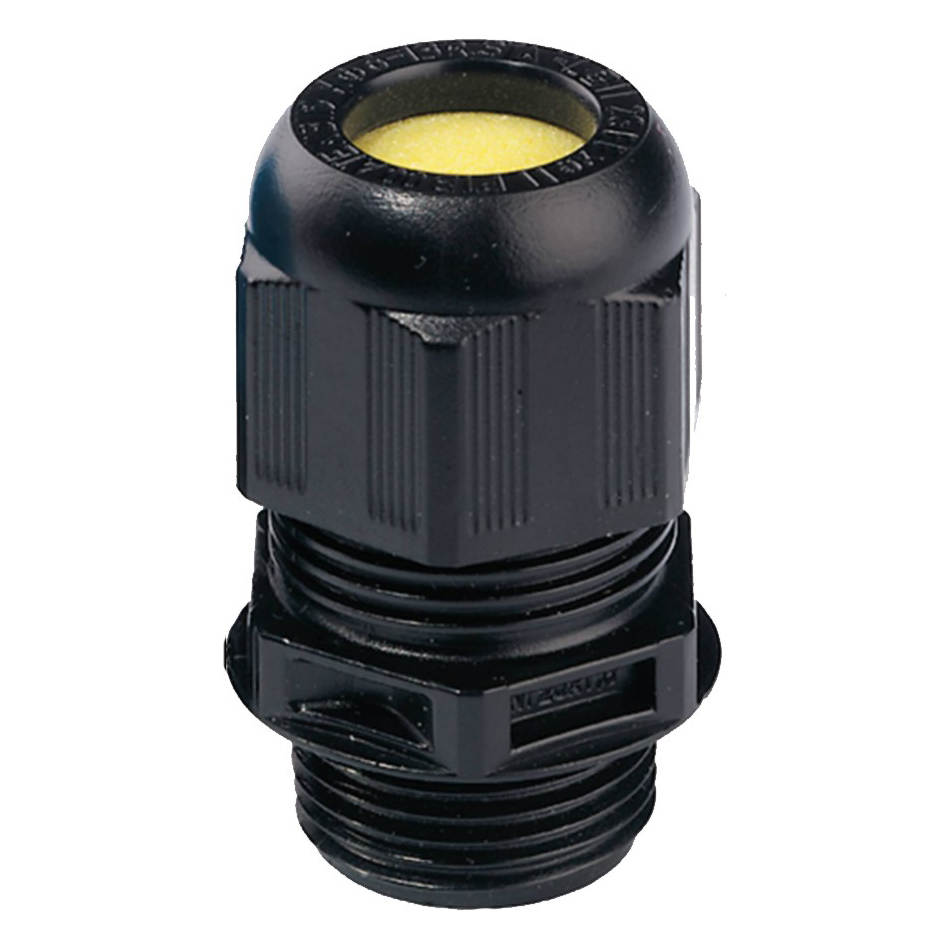

ESKE/1-L-e Long Thread (M12 - M63)

EX Cable Glands Increased Safety Long Thread

10103379

M12

Thread length - 15mm

Marking - II 2 D Ex tb IIIC Db IP68 - II 2 G Ex e IIC Gb

Approval - IECEx PTB 13.0034X - PTB 13 ATEX 1015 X

Protection class - IP66 / 68 (5 bar 30 min)

Glow wire test - 750°C

Temperature range - -40°C - 75°C

Colour - 9005 (Black)

Material - Gland: polyamide, gasket: EPDM

Luckins No: 402085377

Carbon Foot Print:

0.06 (PCF kg/piece)

EAN Number:

4.00769E+12

Glow wire test:

750 ¡C

Group:

ATEX Cable Glands

Key width SW:

16 mm

Material Cable Gland:

Polyamide

Material Sealing Gasket:

EPDM

Ø cable diameter max:

6,0 mm

Ø cable diameter min:

3,0 mm

Ø Connection thread D:

Packing unit:

Protection Class:

IP66 / IP68 (5 bar 30 min)

Size:

M12

Stock:

In-Stock

Temp. range max:

65 ¡C

Temp. Range Min:

15 ¡C

Thread type:

Total length TL:

35,0 - 40,0 mm

Type of protection:

Ex eb, Ex tb

Item Number: 10103379

Trade Price: £1.70

Size:

Quantity:

Please login

EX Cable Glands Increased Safety Long Thread

10103379

M12

Thread length - 15mm

Marking - II 2 D Ex tb IIIC Db IP68 - II 2 G Ex e IIC Gb

Approval - IECEx PTB 13.0034X - PTB 13 ATEX 1015 X

Protection class - IP66 / 68 (5 bar 30 min)

Glow wire test - 750°C

Temperature range - -40°C - 75°C

Colour - 9005 (Black)

Material - Gland: polyamide, gasket: EPDM

Luckins No: 402085377

Carbon Foot Print:

0.06 (PCF kg/piece)

EAN Number:

4.00769E+12

Glow wire test:

750 ¡C

Group:

ATEX Cable Glands

Key width SW:

16 mm

Material Cable Gland:

Polyamide

Material Sealing Gasket:

EPDM

Ø cable diameter max:

6,0 mm

Ø cable diameter min:

3,0 mm

Ø Connection thread D:

Packing unit:

Protection Class:

IP66 / IP68 (5 bar 30 min)

Size:

M12

Stock:

In-Stock

Temp. range max:

65 ¡C

Temp. Range Min:

15 ¡C

Thread type:

Total length TL:

35,0 - 40,0 mm

Type of protection:

Ex eb, Ex tb
